Under Voltage Circuit

Published:2012/11/29 0:19:00 Author:muriel | Keyword: Under Voltage Circuit | From:SeekIC

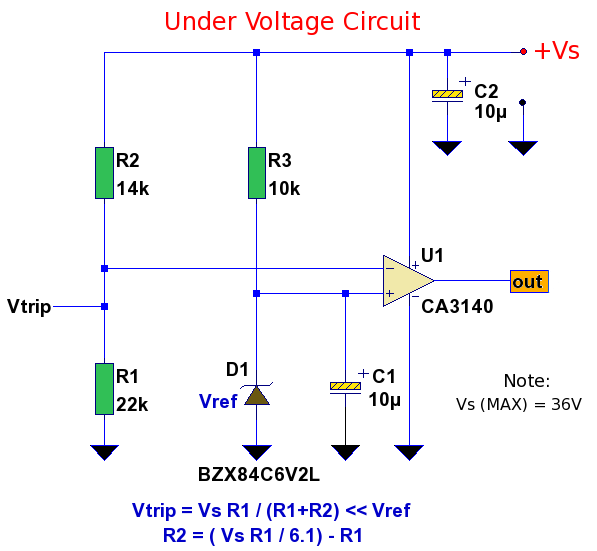

This under voltage circuit may be used as an add-on to an existing power supply or standalone. The circuit draws power from an existing power supply, which may be up to 36 Vdc. Once voltage drops below a preset level the output swings high. A CA3140 MOSFET op-amp is used as a comparator, the output can drive loads of up to 10mA so can drive a low current LED directly. Additional buffering is required for higher loads.
