UJT_MVBR

Published:2009/7/16 22:16:00 Author:Jessie | From:SeekIC

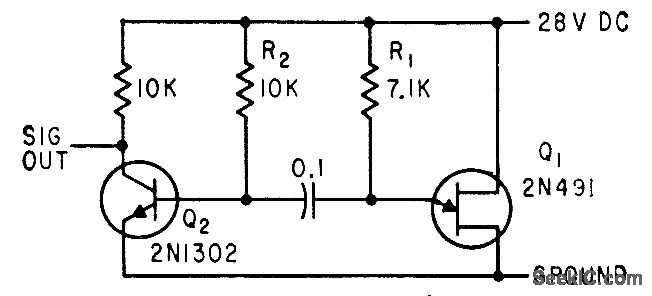

Unijunction transistor serves as multivibrator, with Q2 amplifying its output and providing isolation from load.-F. W. Kear, Unijunction Transistor Pulse-Circuit Design, Electronics, 35:21, p 58-60.
