Triac_relay_contact_protection_circuit

Published:2009/7/21 5:28:00 Author:Jessie | From:SeekIC

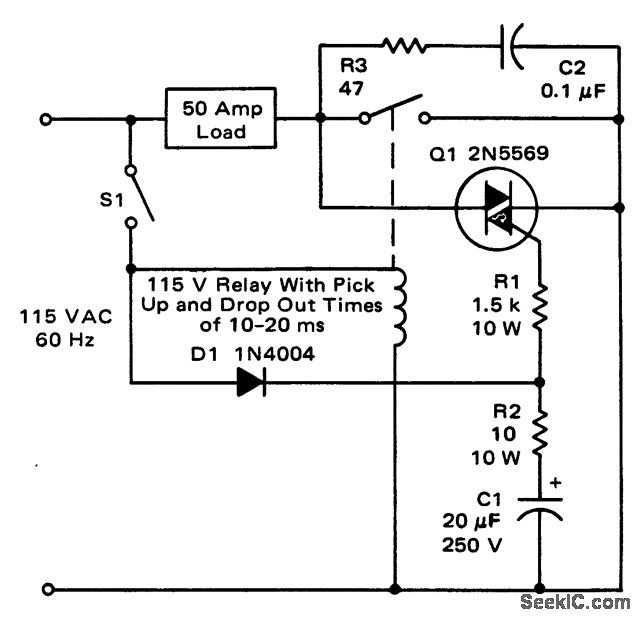

Triac relay-contact protection circuit (courtesy Motorola Semiconductor Products Inc.).
