Threshold_detector_for_rphotodiodes

Published:2009/7/24 21:31:00 Author:Jessie | From:SeekIC

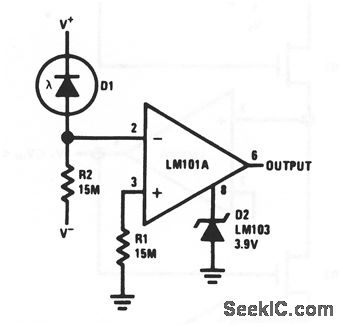

This circuit converts small input currents produced by D1 into levels suitable to drive DTL/TTL loads. Different values of R1/R2 can be selected to set different on/off levels.
