Three time base window circuits

Published:2011/5/16 19:31:00 Author:Christina | Keyword: Three, time base window | From:SeekIC

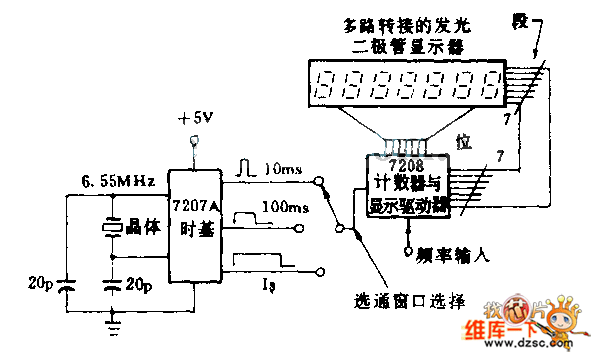

The 7207A crystal control timer produces three accurate selective passing windows; 10ms，100ms and 1S. This windows can be used as the time base of the frequency counter, the approval time standard or the selective passing timer signal.
