Three_position_static_switch

Published:2009/7/21 7:31:00 Author:Jessie | From:SeekIC

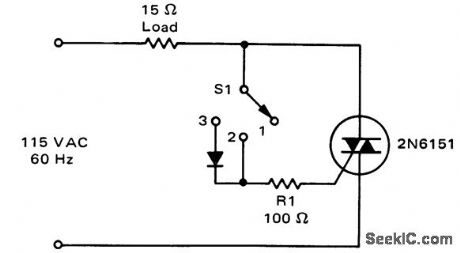

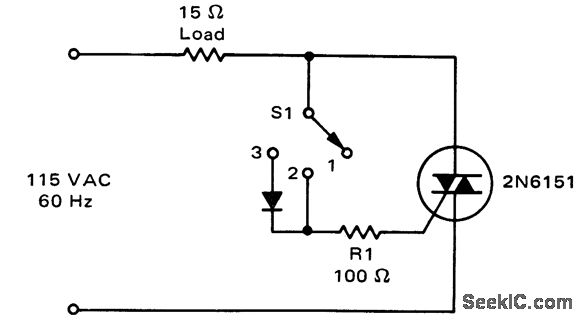

Three-position static switch. In position 1 the switch is off ; in position 2 the switch supplies full-wave power to the load; in position 3 the diode conducts only on half-cycles and the load is supplied with half-wave power (courtesy Motorola Semiconductor Products Inc.).
