The single terminal flyback switch power supply circuit

Published:2011/6/21 6:58:00 Author:qqtang | Keyword: single terminal, flyback switch | From:SeekIC

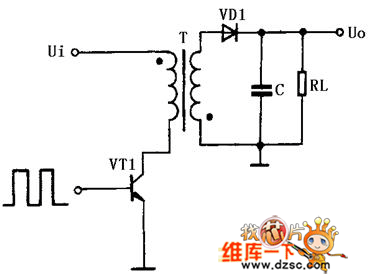

The single terminal flyback switch power supply application circuit is shown in figure 3. The so-called single term means the magnet circuit side of the core in the high-frequency transformer. The so-called flyback means when the switch VT1 is conducting, the inductive voltage of primary coil in the high frequency transformer T is positive in the upper part by passive in the lower part, the rectifier diode VD1 is blocked and save power in the primary coil. When the switch pipe VT1 is blocked, the power stored by the primary coil is delivered to the load after it has been past the coil, rectified by VD1 and filtered by capacitor C.
