The single phase full-wave rectifier circuit

Published:2011/6/17 0:53:00 Author:Seven | Keyword: single phase, full-wave rectifier | From:SeekIC

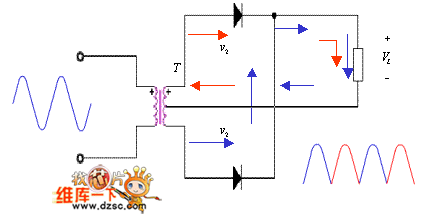

The full-wave rectifier circuit shown in the following figure consists of a transformer with 2 central heads and 2 diodes. Seeing from the circuit, we can find that both the passive and positive half periods has current run across the load, which increase the efficiency. The features of the full-wave rectifier:The output voltage VO is high; the impulse is low; both the positive and passive half periods can provide current for the load, so the transformer is used fully, and it's efficient.The main parameters:
