The simple but special regulated circuit

Published:2011/6/21 2:14:00 Author:Seven | Keyword: regulated circuit | From:SeekIC

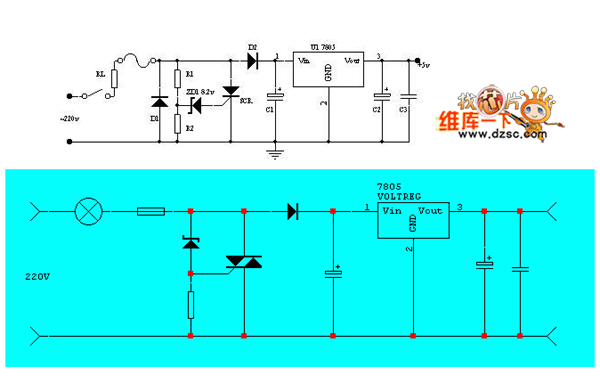

The simple but special regulated circuit: In some conditions, if there needs a regulated circuit while it is running with load, as the control and detector, this circuit will seem brief and convenient. By adjusting the ratio of R1 and R2, the input voltage of the regulated module can be changed, the value of C1 is relative to the loading. A. If the single way thyristor is switched in to dual way thyristor, the circuit will be simpler.
