The fabrication circuit of digital display experimental power supply

Published:2011/5/11 20:32:00 Author:Rebekka | Keyword: fabrication circuit , digital display experimental power supply | From:SeekIC

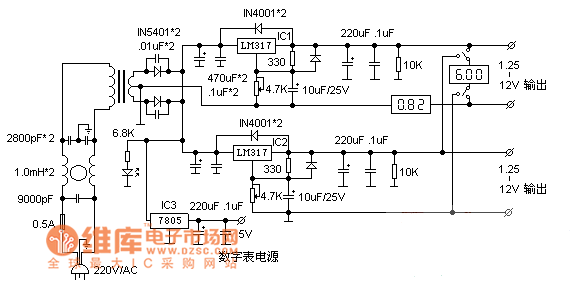

The regulated power supply is widely used in the electronic producing for E-lovers. A reliable, convenient and practical experiments can give our amateur making more convenience. For this purpose, here I introduce some processes of the self-making power supply. In order to avoid the trouble of looking for components and making, here we all use some common components and circuits. But we put more time and costs into the quality of components, circuit design, layout. The shape diagram and internal structure is shown as above.
