The diagram reading illustration of DPCA-Fukang DC7140

Published:2011/7/11 23:11:00 Author:Borg | Keyword: illustration, DPCA-Fukang | From:SeekIC

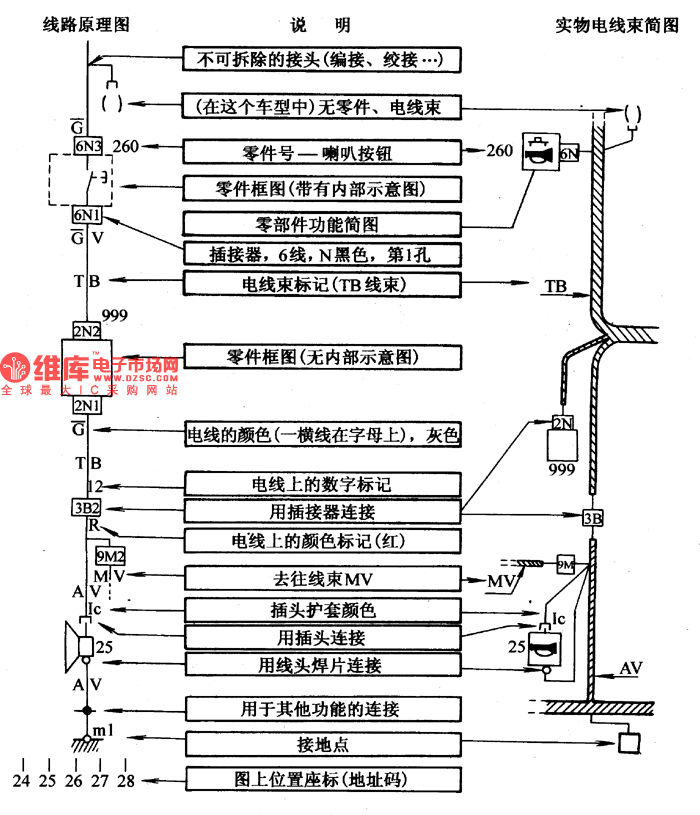

Figure: The diagram reading illustration of DPCA-Fukang DC7140 (1) the two letters on the two side of the wire indicate the symbols of the wire bundles, the figured T1B means the wire is in TB wire bundle, other bundles, such as PB, MT, AV, CP, FR and MV, all the them are the names of the car wire. (2) the wire colors are represented by the letters and the transverse lines near the connector, of which the letters with lines on them means basic color, the other letter means the stripe color on the wire, which are the differences.
