The 9V battery strainmeter signal adjusting circuit

Published:2011/6/20 22:21:00 Author:Seven | Keyword: 9V battery, strainmeter signal | From:SeekIC

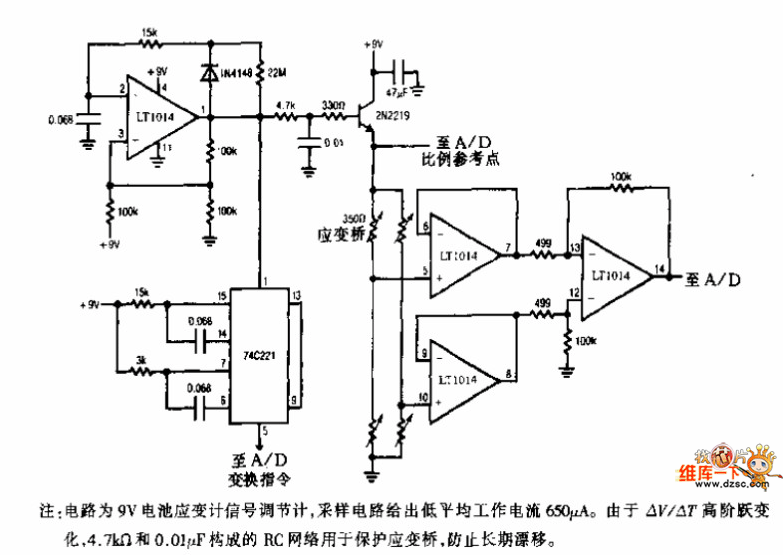

The 9V battery strainmeter signal adjusting circuit is shown as above.Notes: this is a 9V battery strainmeter signal adjusting circuit, the sampling circuit offers the low average working current of 650μA. As ΔV/ΔT jumps in a high order, the RC net composed of 4.7KΩ and 0.01μF is used to protect the reaction bridge, which avoids the long-term drifting.
