TWO_TRIODE_CASCODE_MULTIVIBRATOR

Published:2009/7/16 5:01:00 Author:Jessie | From:SeekIC

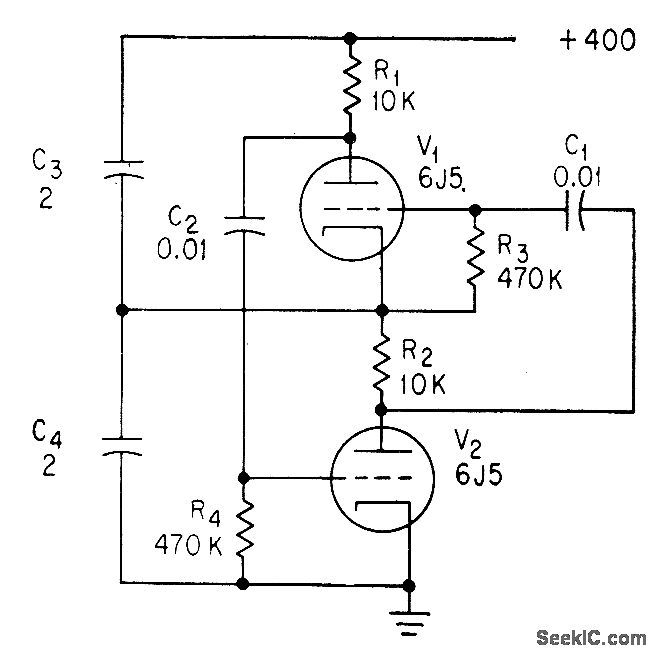

Two capacitors in voltage-divider storage circuit control dual-triode multivibrator to produce linear sawtooth waveform, square wave,sine wave, or pulse.-C. Sing, Advantages of Free-Running Cascode Multivibrators,Electronics, 37:5, p 28-29.
