TWO_DIMENSIONAL_TARGET_SIMULATOR

Published:2009/7/17 3:05:00 Author:Jessie | From:SeekIC

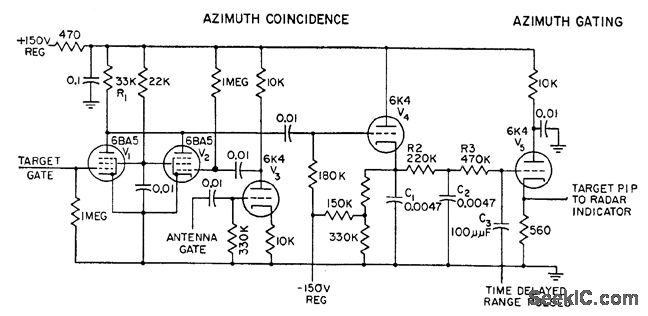

Two signals, one representing angular position of target and the other angular position of radar antenna, are fed to azimuth coincidence circuit. When signals coincide, indicating that antenna is pointing at target, delayed pulses representing a target are passed to radar ppi by azimuth gating circuit.-J. I. Leskinen, Four Ways to Simulate Radar Targets, Electronics, 31:23, p 82-86.
