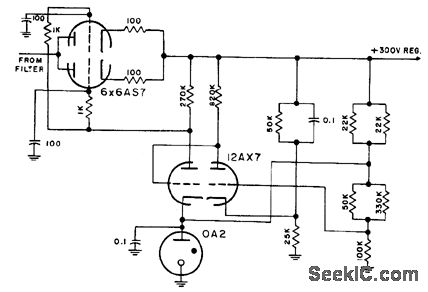

TWIN_TRIODE_CASCADE_1

Published:2009/7/20 21:43:00 Author:Jessie | From:SeekIC

Smaller load resistor improves frequency response. Both reference tube and comparison divider are loaded.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 1, Electron Tube Circuits, 1963, p N2-3.
