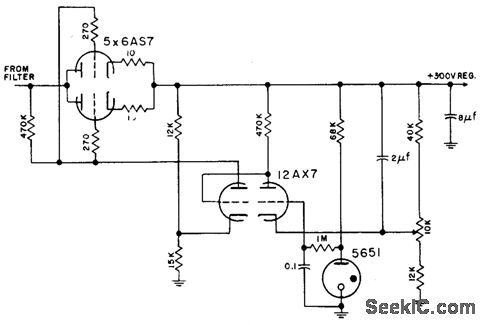

TWIN_TRIODE_CASCADE

Published:2009/7/20 21:37:00 Author:Jessie | From:SeekIC

Has self-contained reference voltage, and does not load reference tube. Is theoretically capable of highest possible gain obtainable with single-envelope d-c amplifiers.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 1, Electron Tube Circuits, 1963, p N2-3.
