TUNNEL_DIODE_LEVEL_DISCRIMINATOR

Published:2009/7/16 22:41:00 Author:Jessie | From:SeekIC

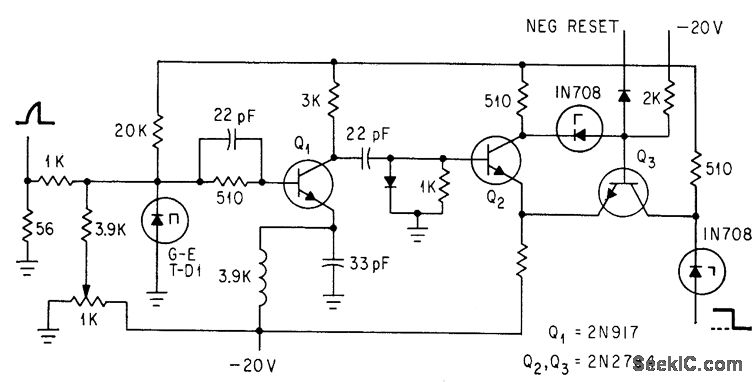

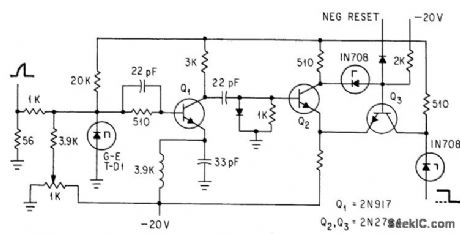

Tunnel diode at input of high-gain amplifier stage gives highly accurate trigger action even for slowly rising input pulse. Used with quinary scalers to measure time intervals accurately to within 1 nsec.-R. Englemann, Quinary Scalers: Measure Time Intervals Digitally, Electronics, 37:5, p 34-36.
