TUNED_OUTPUT_NE602_CIRCUITS

Published:2009/7/17 2:47:00 Author:Jessie | From:SeekIC

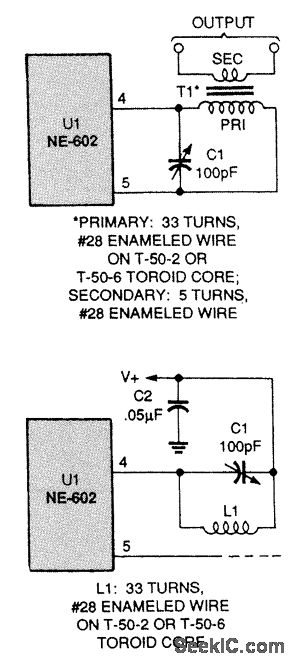

A tuned output like this one will reject all but the desired output signal. Here is a single-ended tuned-output circuit.
