TRIGGERED_THYRATRON_PULSER

Published:2009/7/21 5:02:00 Author:Jessie | From:SeekIC

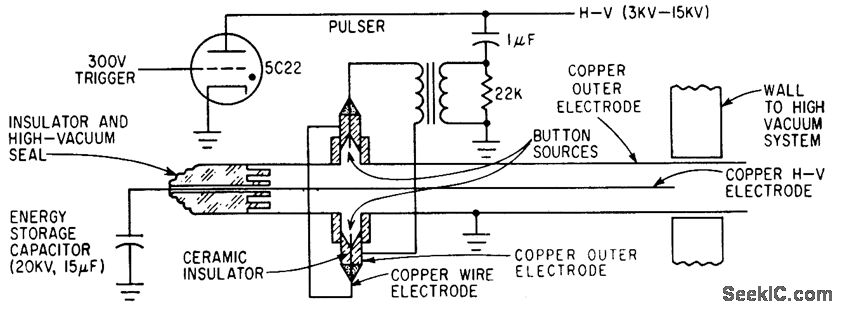

Coaxial rail gun generates high-velocity copper plasma when triggered by series-connected button guns energized through transformer by thyratron pulser. Vaporized copper from buttons shorts main 15-mfd capacitor, vaporizing inner copper high-voltage electrode. –M. F. Wolff,Plasma Engineering-Part 1: Generating and Heating Plasma, Electronics, 34:28, p 47-53.
