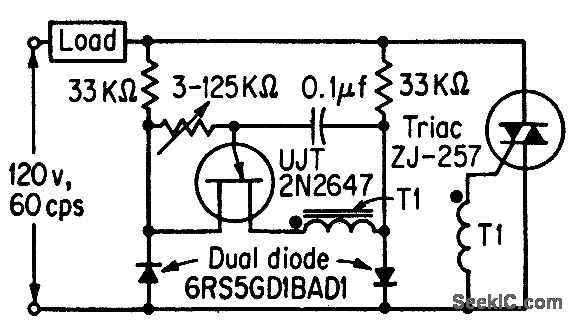

TRIAC_UJT_PHASE_CONTROL

Published:2009/7/20 6:22:00 Author:Jessie | From:SeekIC

Provides wide range of stable control without hysteresis at low outputs and without dependence on supply voltage. Triac eliminates need for transient suppression components that would be required with scr control and permits use of simple two-winding pulse transformer.-M. P. Southworth, Bidirectional Static Switch Simplifies A-C Control, Control Engineering, March 1964, p 75-76.
