TRANSIENT_IMMUNE_MONO

Published:2009/7/16 22:19:00 Author:Jessie | From:SeekIC

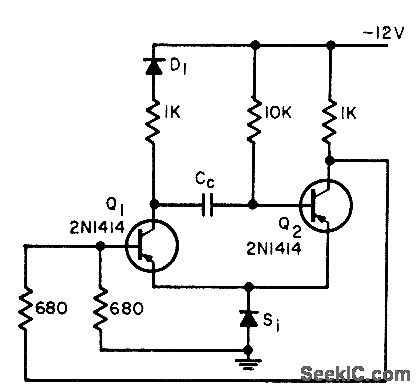

Diode in series with cutoff collector load of Q1 provides protection against undesirable triggering by power supply transients.-W. B. Smith, Jr., Transient-Protection of Monostable Multivibrators, EEE, 11:3, p 38-39.
