TRANSFORMERLESS_dc_POWER_SUPPLY_I

Published:2009/6/23 3:33:00 Author:Jessie | From:SeekIC

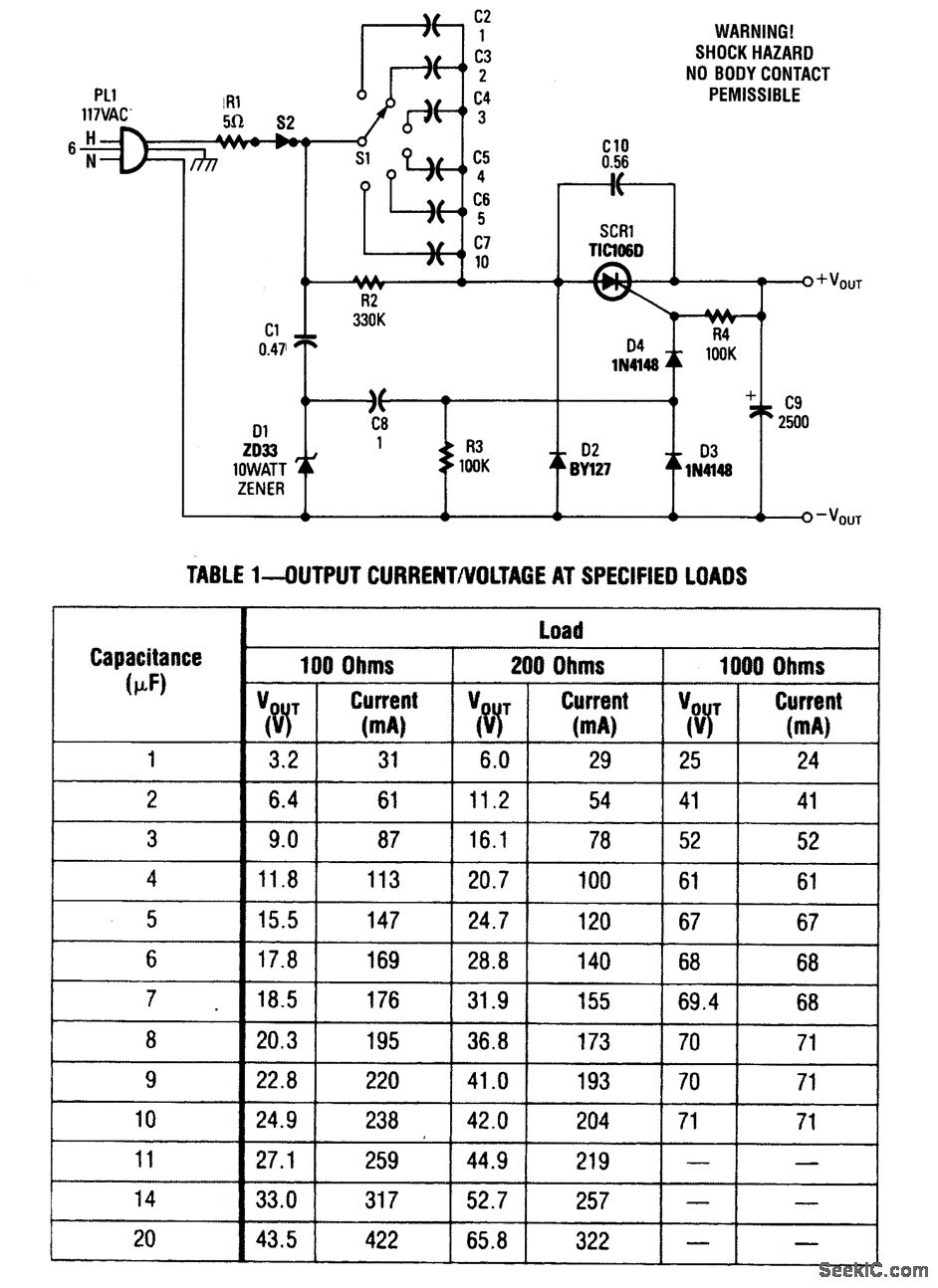

An SCR fires on the positive half cycles of the ac Iine voltage. Switched capacitors are used to select the output voltage. These must all be ac-rated, nonpolarized types.
