TRACKING_POWER_SUPPLY

Published:2009/6/23 4:03:00 Author:May | From:SeekIC

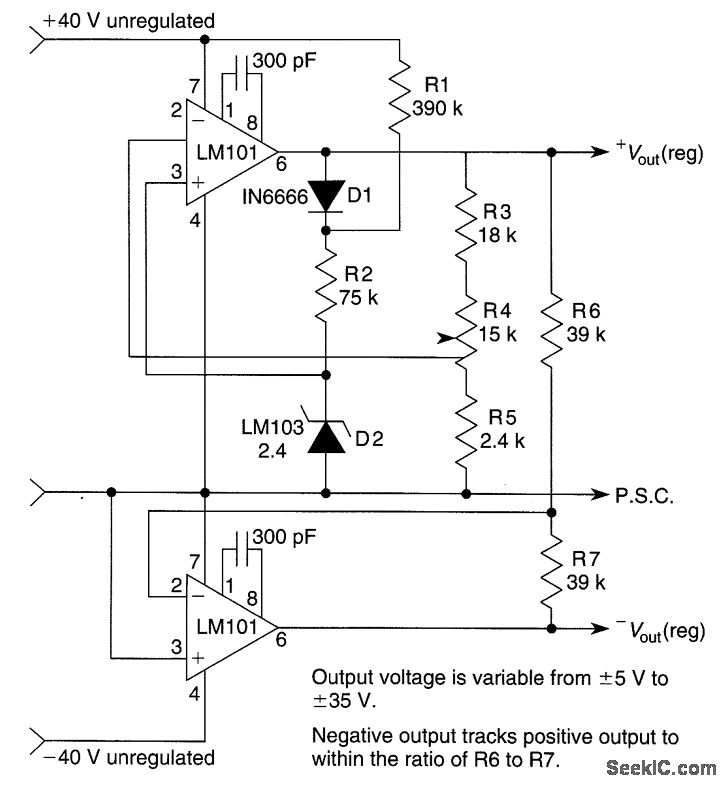

Two op amps are used in this basic op-amp regulator circuit. The outputs can be fed to current amplifier stages or emitter followers, if needed.
