THYRATRON_CONTROLS_CHARGER_RECTIFIER

Published:2009/7/16 4:13:00 Author:Jessie | From:SeekIC

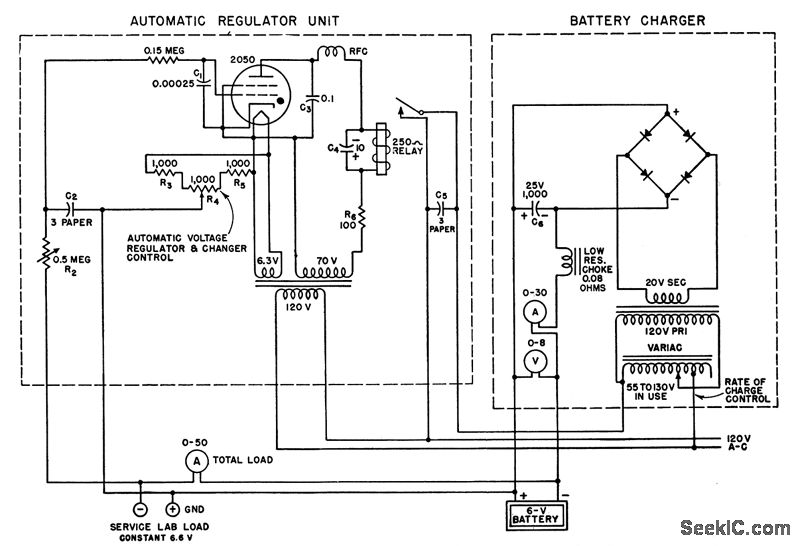

Automatic regular turns charger off when battery voltage exceeds predetermined value, and turns charger on again automatically at any desired lower voltage from 5 to 7.5 v. Line voltage changes do not affect adjustment.-J, Markus and V. Zeluff, Handbook of Industrial Electronic Circuits, McGraw-Hill, N.Y., 1948, p 257.
