TEMPERATURE_COMPENSATED_ZENER

Published:2009/7/20 21:56:00 Author:Jessie | From:SeekIC

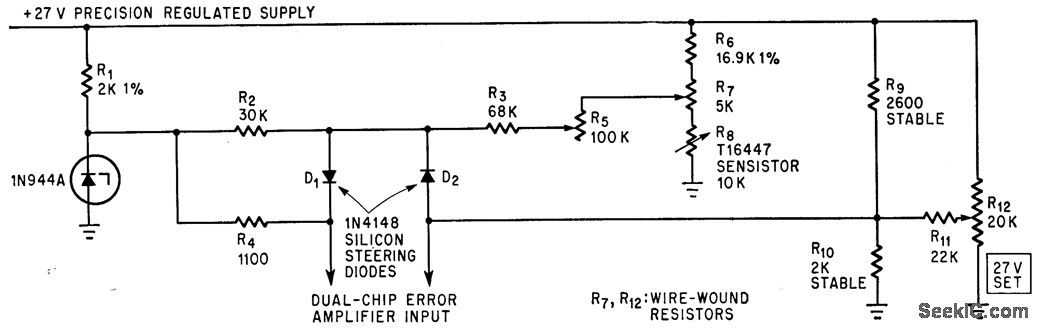

Reference voltage is compared to 27-v output by dual-chip transistor serving as error amplifier. Unique end-compensation circuit using sensistor generates voltage that rises with temperature.-C. H. Moulton, Light Pulse System Shrinks High-Voltage Protection Device, Electronics, 38:11, p 71-75.
