TDA4605 thick film switching power supply IC diagram

Published:2011/5/4 2:11:00 Author:Ecco | Keyword: thick film, switching power supply, IC | From:SeekIC

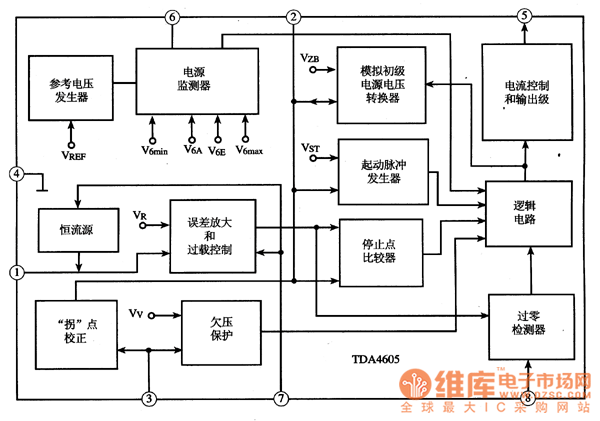

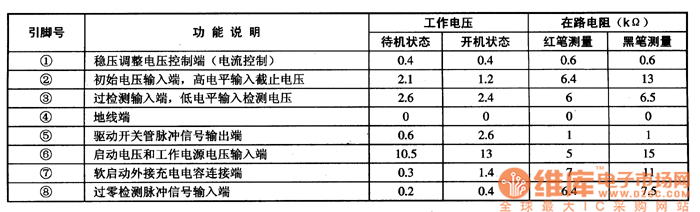

TDA4605 thick film switching power supply IC diagram is produced by Philips, which is widely used in domestic and imported large screen color TV and color display. TDA4605 integrated circuit includes voltage regulator sampling processing circuit, under voltage protection detection circuit, the excitation pulse output circuit, soft start control circuit, its internal circuit diagram shown in Figure 1 million. The 8-pin IC-style packaging million, the pin functions and data listed in Table 1. Figure 1 TDA4605 integrated circuit within the circuit block diagram Table 1 showsTDA4605 integrated circuit pin functions and data
