TAPELESS_PLAY_ONLY_DEVICE

Published:2009/7/17 4:01:00 Author:Jessie | From:SeekIC

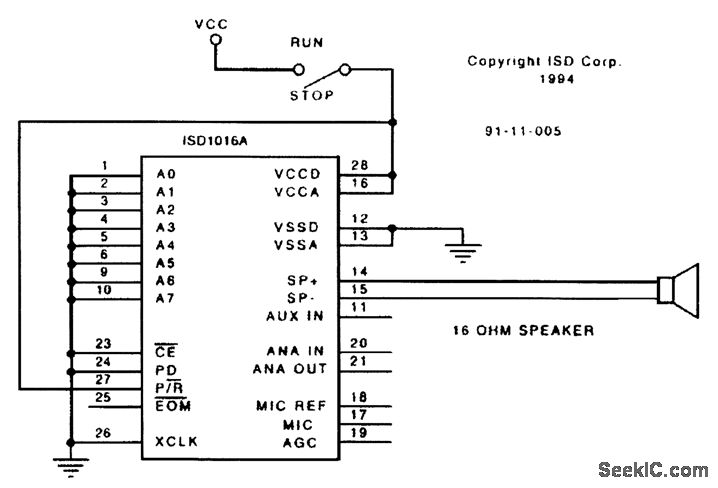

This requires a prerecorded message to be preprogrammed in the ISD1020A. To play a message, set the switch to the +5-V position. The ISD1020A plays the entire contents one time, then stops.Because CB is tied low, the set end-of-message bits are ignored. Momentarily changing the switch to open, then back to +5 V makes the ISD1020A play again.
