Switching power supply thick film integrated circuit diagram

Published:2011/6/14 7:23:00 Author:Sophia | Keyword: Switching power supply, thick film integrated circuit | From:SeekIC

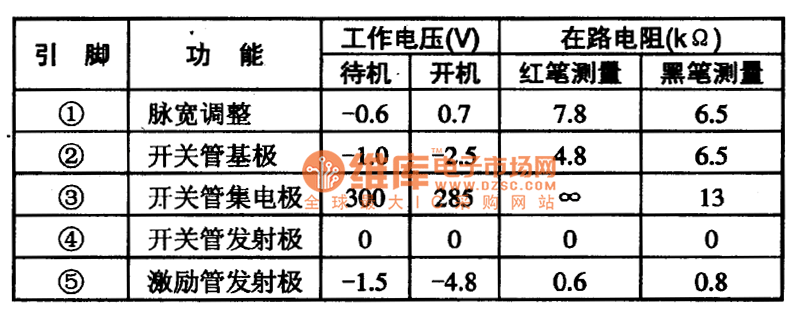

STR一D6601 produced by Sanken company is Switching power supply thick film integrated circuit. The improved products of STR一D6601 is widely used in Hitach and Furistock 64cm color TV and VCD, DVD player. 1. The function and characteristics of STR一D6601STR一D6601 integrated circuit contains distributary, driving circuit and high-power switching tube. The peak power output reaches 120w. 2. The function and data of the pin STR一D6601 integrated circuit adopts single-row pin capsulation, the function and data of its integrated circuit is shown by the chart 1. note: the output power of STR-D6601 is larger than that of FbSTR-6601, so FbSTR-6601 can replace STR-6601,never the other way around
