groundwire style circuit

Published:2011/6/12 7:07:00 Author:chopper | Keyword: groundwire | From:SeekIC

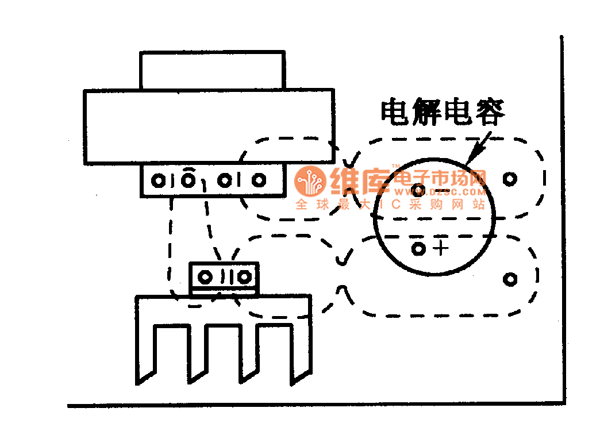

Additionally,line filter which is used to control noise is connected to printed plate at the mains. And then,grounded common mode capacitor is fixed to the soleplate by screw.Lines are short and thick even if the current is not very big. On the printed plate are the lines of sunrise-style,just as the picture.Additionally,when the circuit adopts dual platen,it must switch in washer to guarantee the favorable contact.
