5V / 4A Regulator Circuit

Published:2013/3/20 1:26:00 Author:Ecco | Keyword: 5V / 4A , Regulator | From:SeekIC

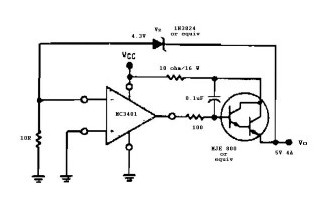

This is the other power supply regulator circuit, is different from the previous circuit, this using IC op amp quad type MC 3401 operational amplifier from Motorola. Here is also used NPN Epitaxial Silicon Darlington Transistor MJE 800.
