Switched_capacitor_12_to_5_V_converter

Published:2009/7/25 2:42:00 Author:Jessie | From:SeekIC

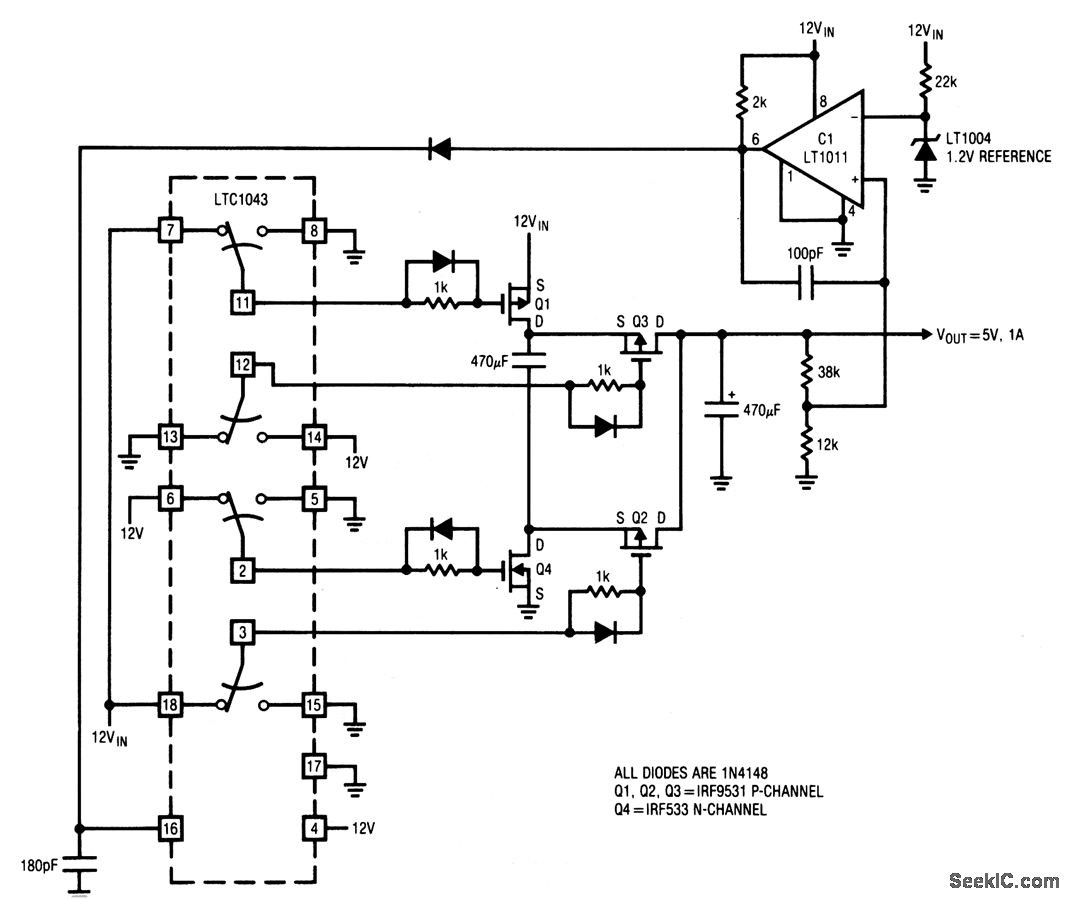

This circuit provides 5 V at 1 A from a 12-V input.
