Stable Power Supply for High Voltage -100V to -1000V

Published:2013/3/22 3:48:00 Author:Ecco | Keyword: Stable Power Supply , High Voltage , -100V to -1000V | From:SeekIC

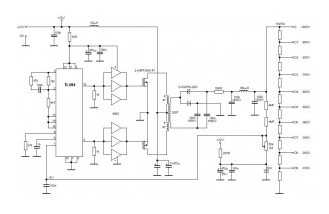

Stable power supply for high voltage power supply for the core of a high voltage of the PWM – Controller TL494, loaded with over 4050 followers on a pair of powerful field-effect transistors, switching the primary winding of step-up transformer (4 + 4 turns – the primary winding, 200 turns – the secondary winding). With the secondary winding through a rectifier with voltage doubling and smoothing filter RC LC voltage reaches the voltage divider, and the regulator output voltage. Scheme can be used as a voltage converter to power the photomultiplier.
