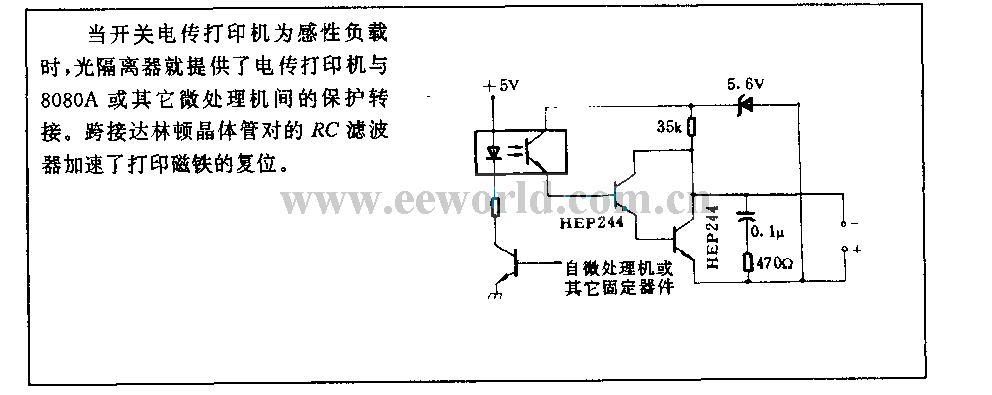

Solenoid safety switch circuit

Published:2011/4/11 2:36:00 Author:Nicole | Keyword: solenoid, safety switch | From:SeekIC

When the switch teleprinter is inductive load, optical isolator provides teleprinter, 8080A or other microprocessors with protection transit. RC filter with darlington transistor pair accelerates the reset of printing magnet.
