Solar Battery Charger

Published:2012/11/29 0:20:00 Author:muriel | Keyword: Solar Battery, Charger | From:SeekIC

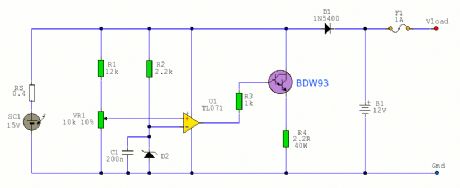

A solar battery charger that uses a shunt regulator to prevent overcharging. Circuit uses a 12V solar battery, but can be adapted for other voltages.
