Simple_boost_regulator

Published:2009/7/24 8:34:00 Author:Jessie | From:SeekIC

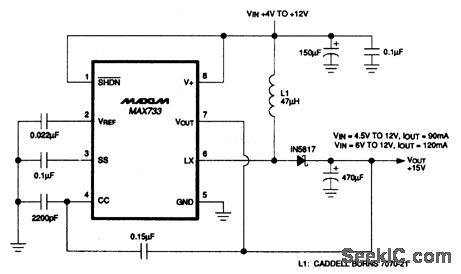

In this circuit，a MAX733 provides a＋15-V output at 90 mA inputs from＋4.5 to＋12 V）or at 120 mA（for inputs from＋6 to＋12 V）．
