Simple and special regulator circuit

Published:2011/5/5 7:52:00 Author:Nicole | Keyword: regulator | From:SeekIC

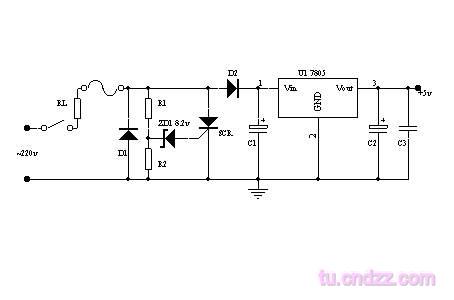

In some cases, if a regulated power supply is required for controlling and detecting purpose in service. Then the circuir is very simple and convenient. To adjust the ratio of R1, R2, one can change the input voltage of steady voltage unit, the C1 is related to the load of output steady voltage.
