Simple_adjustable_linear_regulator

Published:2009/7/23 23:03:00 Author:Jessie | From:SeekIC

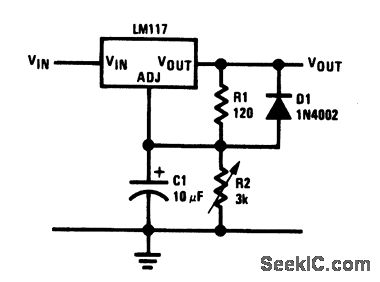

This circuit has a 1.2- to 25-V output range, set by R2. C1 improve ripple rejection. D1 prevents power surges (over 25-V output) from damaging capacitors.
