Simple_ac_power_control

Published:2009/7/21 21:43:00 Author:Jessie | From:SeekIC

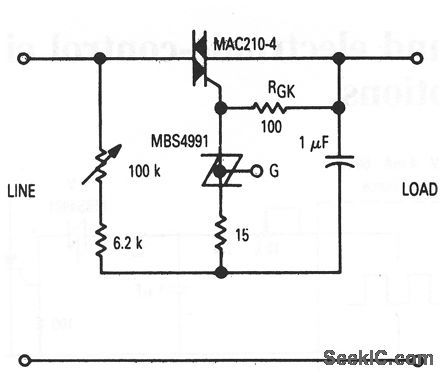

This circuit shows a simple ac full-wave control scheme that uses a triac and SBS. Control is obtained by varying the 100-kΩ pot. Notice that PGK can be omitted when triacs with nonsensitive gates are used.
