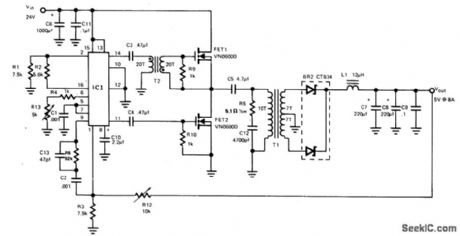

Circuit NotesThis buck-derived circuit provides up to 8 A at 5 Vdc operating off 24 to 32 Vdc.The two power MOSFETs in the circuit conduct alternately for equal periods. Switching frequency is 150 kHz, set by the PWM125 controller. Output of the two MOSFETs is transformed to a lowvoltage level, then rectified. Efficiency of the circuit is 75% when operated in a 22 to 32 V range. Efficiency approaches 90% with higher voltage inputs.
