STROBE_POWER_SUPPLY

Published:2009/7/16 21:04:00 Author:Jessie | From:SeekIC

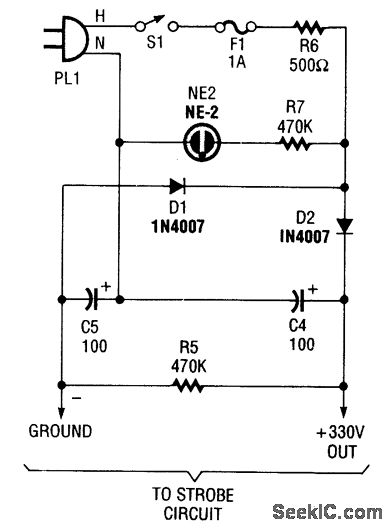

This 330-V power supply is a simple voltage doubler which provides 330 Vdc for a strobe circuit. This supply is not isolated from the power lines and extreme caution is advised.
