SQUARE_WAVE_TUNNEL_DIODE

Published:2009/7/16 2:36:00 Author:Jessie | From:SeekIC

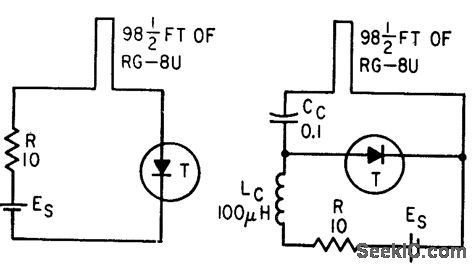

Short-circuited coaxial cable may be connected either in series or in parallel with tunnel diode of basic relaxation oscillator,to get square-wave output with excellent frequency stability over entire bias range.-Wen-Hsiung Ko, Designing Tunnel Diode Oscillators, Electronics, 34:6, p 68-72.
