SOLID_STATE_LIGHT_SOURCES_3

Published:2009/6/17 3:02:00 Author:May | From:SeekIC

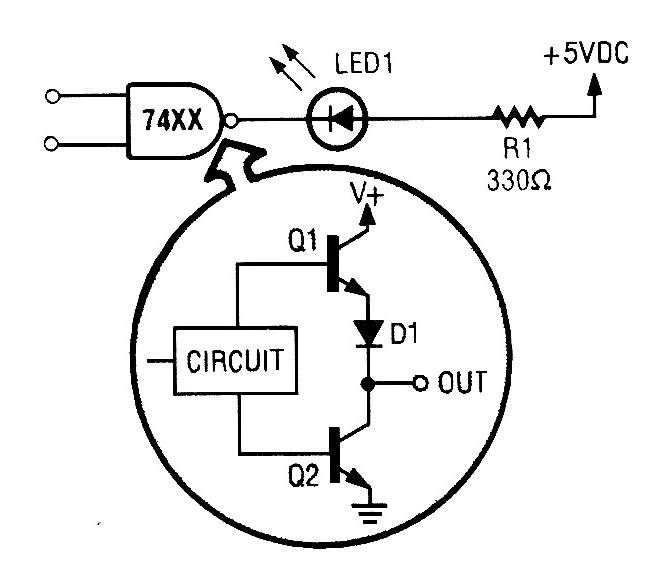

A totem-pole TTL output can drive an LED by grounding the LED's cathode, much like the open-collector driver.
