SOLID_STATE_LIGHT_SOURCES_2

Published:2009/6/17 2:54:00 Author:May | From:SeekIC

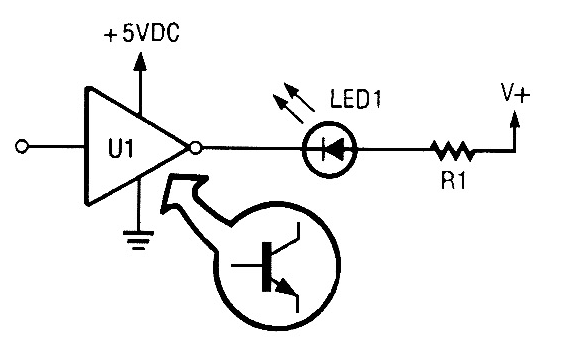

You can drive an LED with an open-collector TTL jnveder. The inveder shown must ground the LED to turn it on.
