SINE_WAVE_ZERO_CROSSING_DETECTOR

Published:2009/7/16 22:52:00 Author:Jessie | From:SeekIC

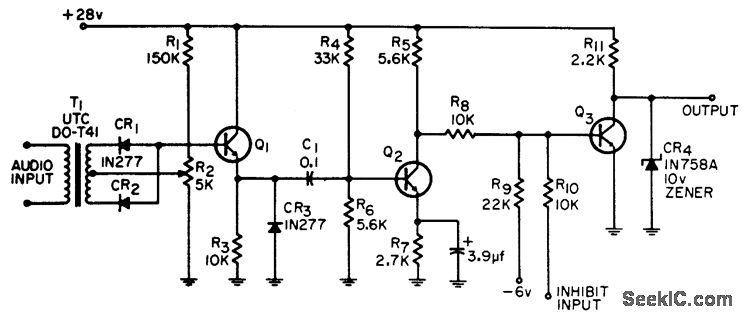

Delivers 10-v pulse that coincides with zero crossings of sine-wave input for most of audio range. Output interval is adjustable.-F. Stevens, Jr., Sine-Wave Zero-Crossing Detector, EEE, 13:11, p 45.
