SIMPLE_MOBILE_RADIO_PROTECTOR

Published:2009/7/17 2:38:00 Author:Jessie | From:SeekIC

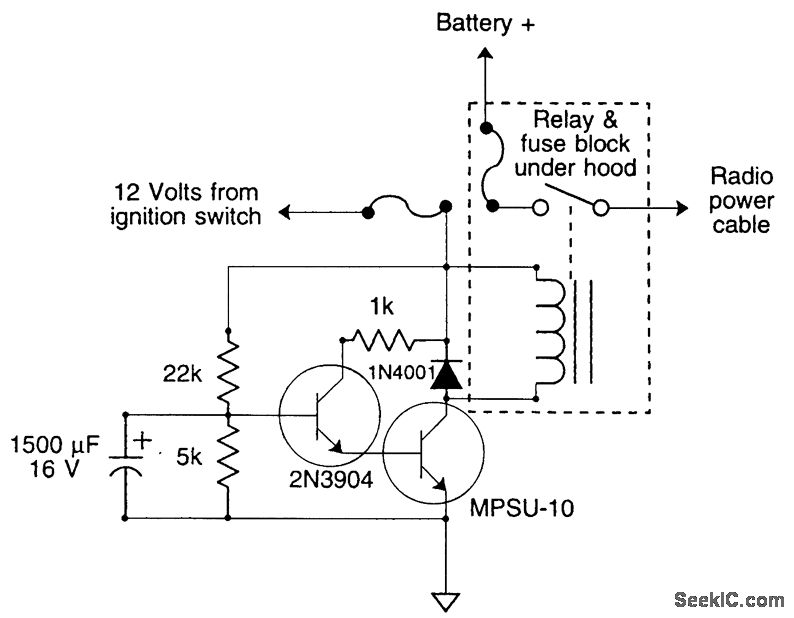

This circuit supplies power to a mobile radio only when the ignition is on and has a delay feature to prevent energizing the radio until the key has been on for several seconds, to avoid spikes and possible transients from the starter motor.
