SIMPLE_DARLINGTON_REGULATOR

Published:2009/7/16 21:15:00 Author:Jessie | From:SeekIC

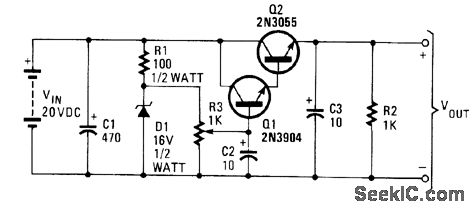

A Darlington pair is used as an emitter-follower that produces about 1.2 V less than the wiper voltage of R3. Output voltage for this circuit will range from close to zero to about 14.5V.
