SIMPLE_9_V_SUPPLY

Published:2009/6/23 4:02:00 Author:May | From:SeekIC

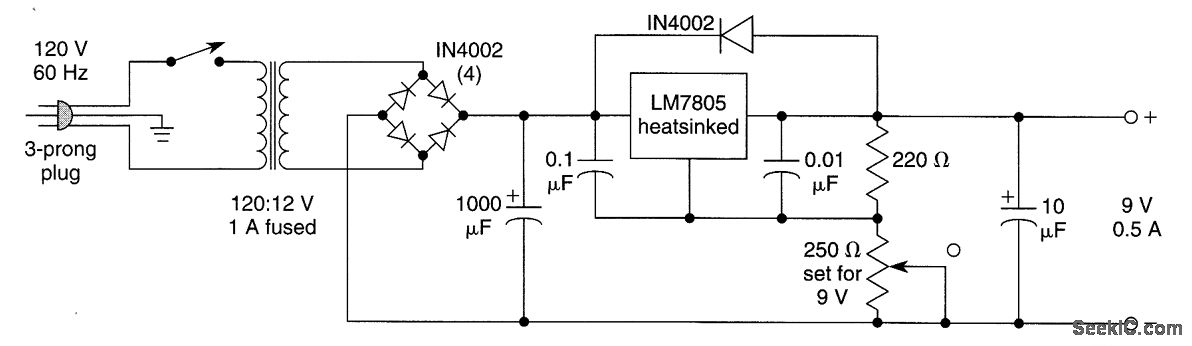

This circuit uses an LM7805 with a resistive voltage divider in the common leg of the regulator.The regulator can be fooled into producing an apparent higher output voltage in this manner. This supply is useful for running radios, tape recorders, or other 9-V devices.
