SELF_INDICATING_REGISTER

Published:2009/7/24 1:52:00 Author:Jessie | From:SeekIC

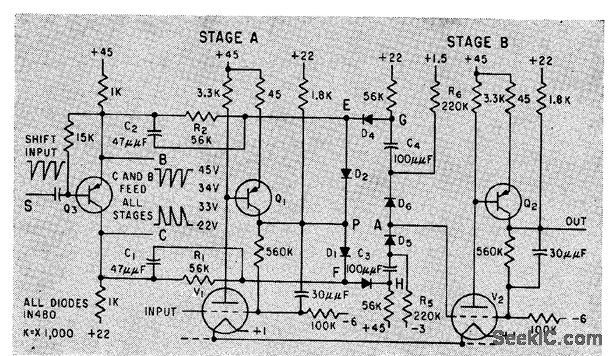

Combines two self-indicating flip-flops with phase splitter that converts single-polarity shift pulses to positive and negative-going pulses for all stages. Indicator triodes are Amperex 6977.-H. Rodriques de Miranda and I. Rudich, Indicator Triode for Direct Data Readout, Electronics, 33:6, p 52-54.
