SELF_BALANCING_TORQUE_INDICATOR

Published:2009/7/16 5:40:00 Author:Jessie | From:SeekIC

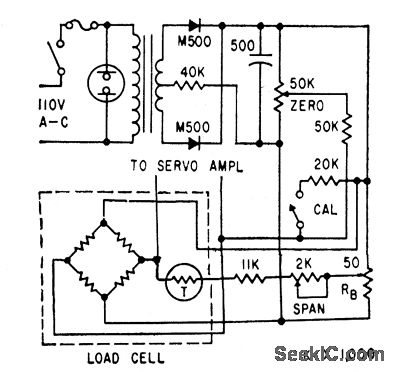

Uses shunt bridge balancing technique. Amplifier and servo motor that drive 50-ohm balancing pot RB are standard commercial units. Highly stable power supply and reference voltage are not needed.-C. H. Haakana, Shunt Bridge Balancing in Strain-Gage Indicators, Electronics, 32:30, p 50-51.
