SCS_SQUARE_WAVE_GENERATOR

Published:2009/7/16 5:30:00 Author:Jessie | From:SeekIC

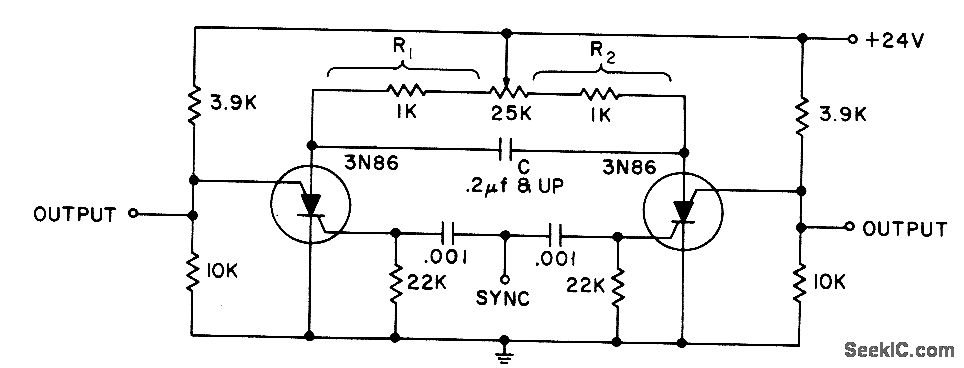

R1-C determines half the period, and R2-C the remainder. R1 should equal R2 for square wave output. Potenliometer varies pulse width without affecting frequency. Outputs are equal and oppositely phased.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 434.
